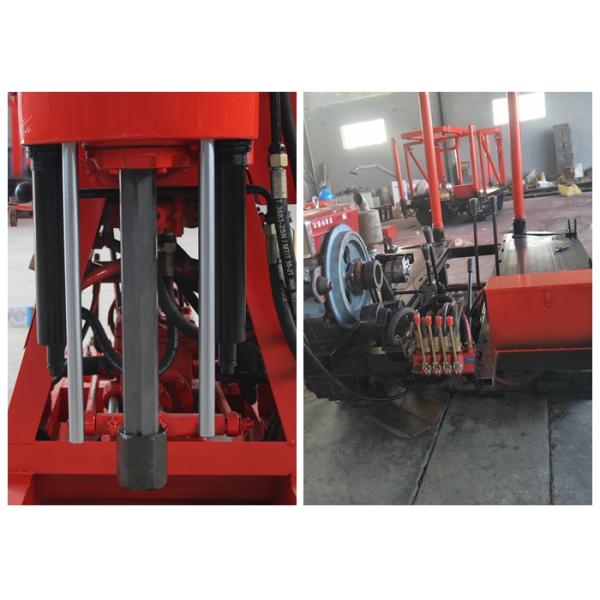

Light Weight Soil Test Drilling Machine for Overseas Geological Investigation Projects

Name: Light Weight Soil Test Drilling Machine for Overseas Geological Investigation Projects
Brand: JINZHOU SHITAN
Price: 1 USD

Brand Name : JINZHOU SHITAN

Model Number : ST-200

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 2000 sets per year

Delivery Time : 7-12 days

Packaging Details : Standard Export Package

Condition : New

Type : Core Drilling Rig

Power Type : Diesel

Feature : High Drilling Efficiency

Warranty : 1 Year

Contact Now

Light Weight Soil Test Drilling Machine for Overseas Geological Investigation Projects

Product Features:

1.With hydraulic feeding device, elevated drilling efficiency, reduced labor strength.

2.The rig is equipped with an upper spherical jaw holding mechanism and hexagonal drive drilling rod which can be replaced without shutdown, high efficiency, safe and reliable.

3. A hole bottom pressure gauge is mounted indicating the pressure in order to control the status inside the hole.

4.Compact structure, small volume, lightweight, high detachability, easy transportation and suitable for the operations in plains or mountain areas.

Product Parameter:

Drilling capacity(m)	AQ wire-line rod	560
	BQ wire-line rod	350
	NQ wire-line rod	250
	42 rod	530
Spindle speed(r/min)	Forward	65;114;180;248; 310;538;849;1172
	Reverse	51;242
Max torque (Nm)		2760
Angle reange		0-90°
Spindle max pull force(KN)		60
Spindle stroke (mm)		600
Hoist max life capacity with single rope (KN)		30
Spindle inner dia (mm)		76
Oil pump		SCB32/12
Power unit	Electric motor	Y180L-4,22Kw
	Diesel engine	395K2,19.85Kw
Inner dia of spindle (mm)		2150×900×1690

Drill body weight (excluding power)(kg)		950
